LP40D X1/Z1/Z2 Max Travel: 145/240/340 mm Chuck Size: Collet/6"* Main/Sub Spindle Clamping: Hydraulic Swing Diameter: Over Bed: ⌀500 mm Over Slide: ⌀290 mm Max Turning Length: 100 mm X1/Z1/Z2 Rapid Speed: 20/20/20 m/min Main Spindle: Motor: 5.5 kW Spindle Speed: 5000 rpm Spindle Through Hole: ⌀40 mm Spindle Nose: A2-5 Sub-Spindle: Motor: 3.7 kW Spindle Through Hole: ⌀35 mm Tool Post: Power Turret Tool Shank Size: 25*25 mm Boring Tool Diameter: ⌀32 mm Turret Stations No.: 12 Stations Hydraulic Station Tank: 50 L Cooling: Cooling Pump Power: 180 W Accuracy: X1/Z1/Z2 Positioning Accuracy: 0.008 mm X1/Z1/Z2 Repeatability Accuracy: 0.003 mm Surface Roughness (45# Steel): Ra 0.8 Total Power Consumption: 18.5 KVA Overall Dimensions (LWH): 323017101920 mm Machine Weight: 3200 kg

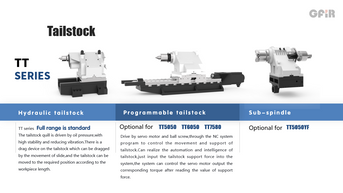

TT3520: Swing Diameter Over Bed: Φ430 mm Swing Diameter Over Slide: Φ170 mm Max. Turning Diameter: Φ255 mm Max. Turning Length: 230 mm Spindle Speed: 5000 rpm Spindle Nose: A2-5 Spindle Bore Diameter: Φ48 mm Chuck Size: 6 inch Tailstock Type: Hydraulic Weight: 2350 kg
TT5030: Swing Diameter Over Bed: Φ520 mm Swing Diameter Over Slide: Φ210 mm Max. Turning Diameter: Φ320 mm Max. Turning Length: 300 mm Spindle Speed: 4000 rpm Spindle Nose: A2-6 Spindle Bore Diameter: Φ71 mm Chuck Size: 8 inch Tailstock Type: Hydraulic Weight: 3250 kg
TT5050: Swing Diameter Over Bed: Φ520 mm Swing Diameter Over Slide: Φ210 mm Max. Turning Diameter: Φ320 mm Max. Turning Length: 500 mm Spindle Speed: 4000 rpm Spindle Nose: A2-6 Spindle Bore Diameter: Φ71 mm Chuck Size: 8 inch Tailstock Type: Hydraulic Weight: 3500 kg
TT6050: Swing Diameter Over Bed: Φ600 mm Swing Diameter Over Slide: Φ260 mm Max. Turning Diameter: Φ430 mm Max. Turning Length: 500 mm Spindle Speed: 4000 rpm Spindle Nose: A2-8 Spindle Bore Diameter: Φ75 mm Chuck Size: 8 inch Tailstock Type: Hydraulic Weight: 4200 kg
TS6050: Swing Diameter Over Bed: Φ600 mm Swing Diameter Over Slide: Φ300 mm Max. Turning Diameter: Φ420 mm Max. Turning Length: 500 mm Spindle Speed: 4000 rpm Spindle Nose: A2-8 Spindle Bore Diameter: Φ75 mm Chuck Size: 8 inch Tailstock Type: Hydraulic Weight: 4200 kg

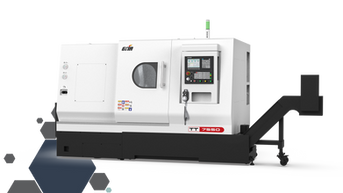

TT7550: Swing Diameter Over Bed: Φ650 mm Swing Diameter Over Slide: Φ400 mm Max. Turning Diameter: Φ500 mm Max. Turning Length: 500 mm Spindle Speed: 3000 rpm Spindle Nose: A2-8 Spindle Bore Diameter: Φ92 mm Chuck Size: 10 inch Tailstock Type: Hydraulic Weight: 4900 kg
TT7580: Swing Diameter Over Bed: Φ650 mm Swing Diameter Over Slide: Φ400 mm Max. Turning Diameter: Φ500 mm Max. Turning Length: 800 mm Spindle Speed: 3000 rpm Spindle Nose: A2-8 Spindle Bore Diameter: Φ92 mm Chuck Size: 10 inch Tailstock Type: Hydraulic Weight: 5500 kg
TT5050D: Swing Diameter Over Bed: Φ550 mm Swing Diameter Over Slide: Φ390 mm Max. Turning Diameter: Φ350 mm Max. Turning Length: 500 mm Spindle Speed: 4000 rpm Spindle Nose: A2-6/A2-5 Spindle Bore Diameter: Φ71/Φ48 mm Chuck Size: Spindle 8/Sub-spindle 6 inch Tailstock Type: Hydraulic Weight: 3850 kg
TT4530YF: Swing Diameter Over Bed: Φ620 mm Swing Diameter Over Slide: Φ350 mm Max. Turning Diameter: Φ270 mm Max. Turning Length: 350 mm Spindle Speed: 4000 rpm Spindle Nose: A2-6 Spindle Bore Diameter: Φ56 mm Chuck Size: 6 inch Tailstock Type: Sub-spindle Weight: 3880 kg
TT5050YF: Swing Diameter Over Bed: Φ550 mm Swing Diameter Over Slide: Φ450 mm Max. Turning Diameter: Φ340 mm Max. Turning Length: 500 mm Spindle Speed: 4000 rpm Spindle Nose: A2-6 Spindle Bore Diameter: Φ71 mm Chuck Size: 8 inch Tailstock Type: Hydraulic Weight: 4500 kg
